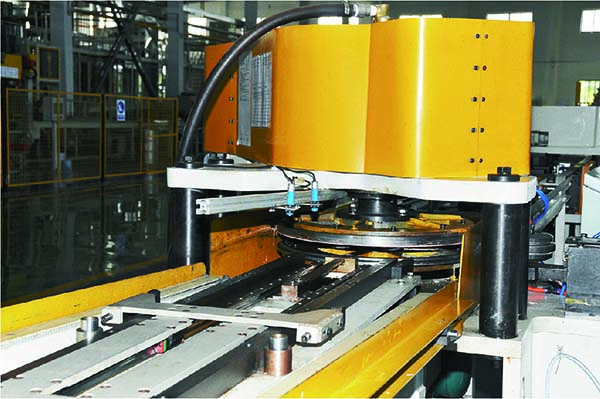

PROL-M101型自动预卷机

PROL-M101 Type Automatic Pre-rolling machine








  1.   一、用途
      One, application
  1.
  2.   1、对冲床加工完成的天板(桶盖)或地板(桶底)进行再加工的设备;
      1. A device for reprocessing the punched top and bottom of the steel drums.
  3.
  4.   2、将天板(桶盖)或地板(桶底)的边缘卷成满足注胶及卷封要求形状的设备;
      2. Rolling the edge of the drum top and bottom into the shape which meet with the injecting glue and the seaming requirements.

  3、完成天地板(桶底)边缘成型;
  3. Complete the forming of the drum top and bottom.

  4、安装注胶装置进行注胶。
  4. Install the glue injecting device for injection.

  1.   二、性能特点
      Two, characteristics
  1.
  2.   1、预卷轮进给量可快速调节;
      1. The feeding amount of the prerolling wheel can be adjusted quickly.
  3.
  4.   2、预卷轮高低位置可快速调节;
      2. The high and low position of the prerolling wheel can be adjusted quickly.
  5.
  6.   3、实现水平加工天、地板(桶盖、底),适应整体流水线需要,安装维修方便;
      3.Implement horizontal processing of the drum top and bottom to meet with the needs of the whole assembly line, and its installation and maintenance is convenient.
  7.
  8.   4、进出料由气动完成,快速有效完成入料过程及出料过程;
      4. The process of input and output of the material is completed by pneumatic, which is fast and effective.
  9.
  10.   5、预卷完成后,对天地板(桶底)进行有效制动,安全可靠;
      5. The top and bottom of the steel drums will be braked effectively, which is safe and reliable.
  11.
  12.   6、预卷轮带有冷却装置;
      6. Prerolling wheel is provided with a cooling device
  13.
  14.   7、有注胶装置时,通过设定注胶时间控制注胶量;
      7. With the injecting device, the injecting amount can be controlled by setting the glue injecting time.
  15.
  16.   8、设备采用高性能PLC及触摸屏,实现设备参数数字调整,操作简单方便快捷。
      8. The equipment adopts high property PLC and touch screen, which realizes the digital adjustment of the parameter of the equipments and make the operation simple and convenient.
  17.



  1.   三、主要技术参数
       Three, main technical parameters

参数设置
Parameter setting

单位
unit

参数值
Parameter value

备注
Remarks

速度
Speed

个/分钟
Nos per minute

12

720个/小时
720 per hour

电压
Voltage

V

380

三相五线制
Three phase five wire system

总功率
Total Power

KW

20



用气量
Gas Consumption

L/min

125



机械外形尺寸
Machine overall dimension

mm(L*W*H)



L为传送线方向
L is the diretion of the transmission line
