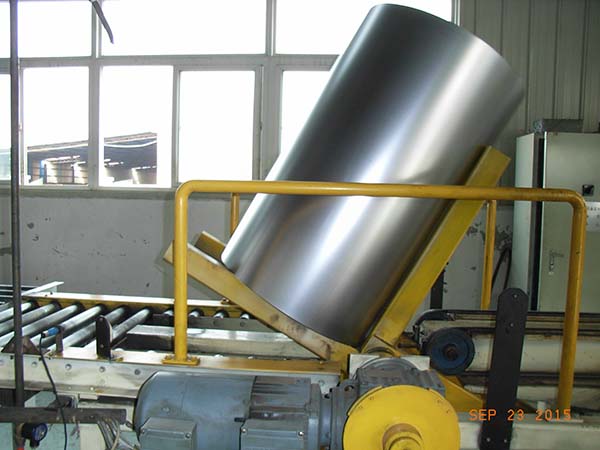

DTL-M101型自动90度倒桶立桶机
DTL-M101 Type 90 degrees Automatic Steel Drums Rotating Machine |
| |
|
|
| |
|
|
|
- 一、用途
One, application
-
- 1、 对成品钢桶进行90度翻转的设备；
1. The device for rotating the finished steel drums with 90 degrees.
- 二、性能特点
Two, characteristics

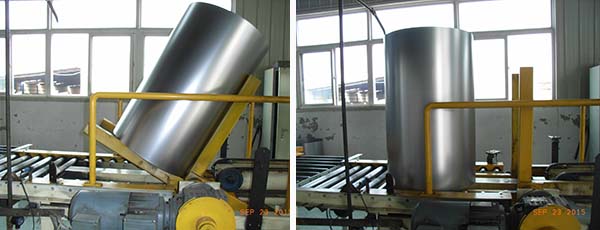

- 1、可完成对直立的钢桶90度放倒或对平放的钢桶90度立起；
1. It can complete 90 degrees for the erected or flat steel drums .
- 2、直立翻转、平放翻转均由十字型翻转机构完成；
2. Both the erected and flat rotation are completed by the cross turing macine.
- 3、电机驱动，运行平稳可靠；
3. The equipment is driven by motor and its running is stable and reliable.
- 4、倒桶机另配推进气缸；
4. The rotating machine is equipped with pushing cylinder.
- 5、设备采用高性能PLC节点控制，无需人员操作。
5. The equipment adopts high performance PLC junction control without personnel operation.
-
- 三、主要技术参数
Three, main technical parameters
参数设置
Parameter setting |
单位
unit |
参数值
Parameter value |
备注
Remarks |
速度
Speed |
个/分钟
Nos per minute |
15 |
900个/小时
900 per hour |
电压
Voltage |
V |
380 |
三相五线制
Three phase five wire system |
总功率
Total Power |
KW |
0.65 |
|
用气量
Gas Consumption |
L/min |
0.75 |
|
适应桶高
Drum Height suitable to |
mm |
880~920 |
|
适应桶径
Drum Diameter suitable to |
mm |
560、571 |
|
机械外形尺寸
Machine overall dimension |
mm（L*W*H） |
950 * 1500 * 1600 |
|
|
|
| |
|
|
|
|
|
| |
