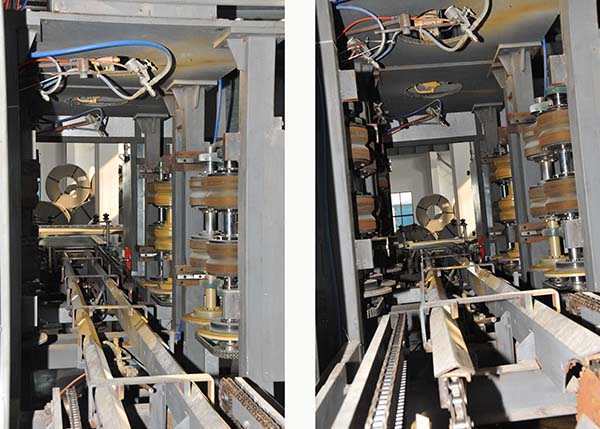

PSBI-M102型钢桶桶身内喷涂机

PSBI-M102 Type Inner Spraying Machine for the Drum Body

1. 　　一、用途
   　　One, application

1. 　　
2. 　　1、对钢桶内部表面进行涂装的专用设备；
   　　1. Special device for the internal coating of the steel drums.

3. 　　2、该设备自动完成钢桶内部的喷涂涂装过程。
   　　2. Spray coating process for the internal of steel drums automatically, which is fast and reliable.

　　

1. 　　二、性能特点
   　　Two, characteristics
2. 　　1、同时完成两个桶身的内部位全方位喷涂，不流挂，涂膜一致；
   　　1. It completes the internal omnibearing spraying of the two drum body simultaneously without flowing and having consistant film.
3. 　　2、安装有2套外加持式喷涂工位，可适应多品种不同涂层材料钢桶桶框喷涂，无需更换工装；
   　　2. Equipped with 2 sets of outer holding spraying station, which can be adapted to the steel drums frame spraying with various coating materials without changing the tool.
4. 　　3、安装有“文丘里”式水幕除尘装置及其引风装置，有效阻挡漆雾飞溅；
   　　3. Equipped with "venturi" type water curtain dust removal device and a wind guiding device, which can prevent the splashing of the paint mist effectively.
5. 　　4、采用外加持四滚轮驱动，动力装置置于喷房两侧；
   　　4. Adopted the outer holding four rolling wheels driving device and the power device is placed at two sides of the spraying room.
6. 　　5、通过触摸屏，对动力装置、喷涂漆量实施智能控制，并自动完成工艺调整；
   　　5. Implement intelligent control of the power device, the paint spraying amount and complete process adjustment automaticallty through the touch screen.

　　6、主传动链为封闭式工位回转式链运送传输，运转可靠、清理便捷；
　　6. The main transmission chain is a closed type station rotary chain transmission, the running of which is reliable and makes the cleaning convenient.

1. 　　7、设备采用高性能PLC及触摸屏，实现设备参数数字调整，操作简单方便快捷。
   　　7. The equipment adopts high property PLC and touch screen, which realizes the digital adjustment of the parameter of the equipments and make the operation simple and convenient.

1. 　　
2. 　　三、主要技术参数
   　　 Three, main technical parameters
