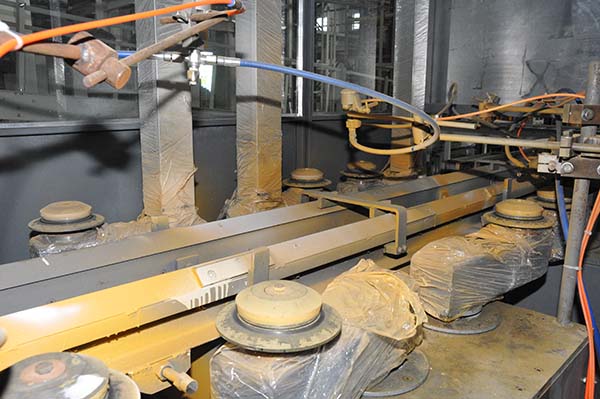

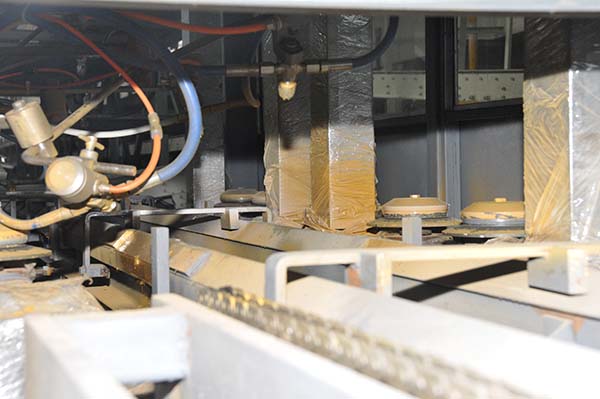

PSCI-M102型钢桶底盖内喷涂机

PSCI-M102 Type Internal Coating Machine for the Drum Bottom










  1.   一、用途
      One, application
  1.
  2.   1、 对钢桶底盖内部表面进行涂装的专用设备;
      1. Special device for the internal coating of the top and bottom of the steel drums.
  3.   2、该设备自动完成钢桶底盖内部的喷涂、涂装过程。
      2. The equipment complete the interal coating process of the top and bottom of the steel drums automatically.

  4.

  1.   二、性能特点
      Two, characteristics
  2.   1、同时完成两个钢桶底盖的内部位全方位喷涂,不流挂,涂膜一致;
      1. It complete the internal omnibearing spraying of the two drum top and bottom simultaneously without flowing and having consistant film.
  3.   2、安装有2座喷涂工位,可适应多品种不同内涂层材料喷涂;
      2. Equipped with 2 sets paint spraying station and can be adapted to varieties of different internal coating materials.
  4.   3、“文丘里”式水幕除尘装置及其引风装置,有效阻挡漆雾飞溅;
      3. Equipped with "venturi" type water curtain dust removal device and a wind guiding device, which can prevent the splashing of the paint mist effectively.
  5.   4、通过触摸屏,对动力装置、喷涂漆量实施智能控制,并自动完成工艺调整;
      4. Implement intelligent control of the power device, the paint spraying amount and complete process adjustment automaticallty through the touch screen.
  6.   5、主传动链为封闭式工位回转式链运送传输,运转可靠;清理便捷;
      5. The main transmission chain is a closed type station rotary chain transmission, the running of which is reliable and makes the cleaning convenient.

  6、设备采用高性能PLC及触摸屏,实现设备参数数字调整,操作简单方便快捷。
  6. The equipment adopts high property PLC and touch screen, which realizes the digital adjustment of the parameter of the equipments and make the operation simple and convenient.



  1.
  2.   三、主要技术参数
       Three, main technical parameters

参数设置
Parameter setting

单位
unit

参数值
Parameter value

备注
Remarks

速度
Speed

个/分钟
Nos per minute

12

720个/小时
720 per hour

电压
Voltage

V

380

三相五线制
Three phase five wire system

总功率
Total Power
KW 10
用气量
Gas Consumption
L/min 1000

适应桶高
Drum Height suitable to

mm

880~920



适应桶径
Drum Diameter suitable to
mm 560、571

机械外形尺寸
Machine overall dimension

mm(L*W*H)

8500* 3600 * 2600
